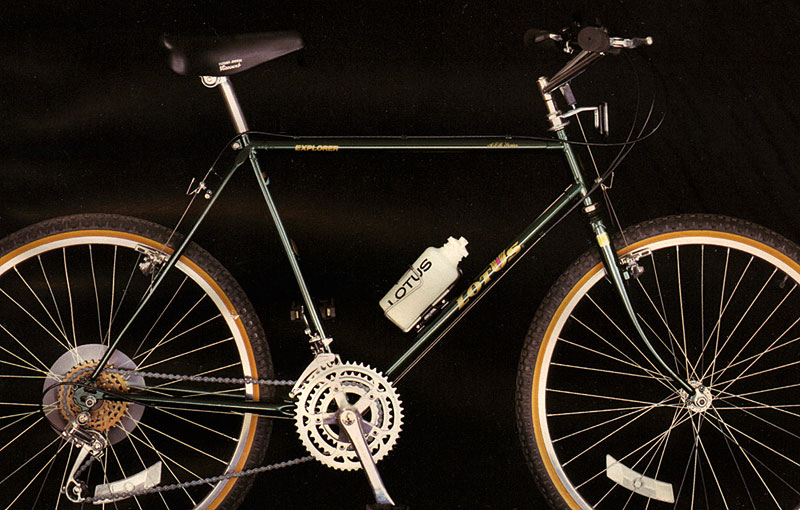

1987 Explorer 15-Speed
| 1987 Lotus Explorer Town & Country ATB Series |
|||
| Frame Details | Chrome-moly oversize tubing, TIG welding, brazed on fittings for cantilever brakes, rear carrier rack bosses, top tube cable guides, cable guides under bottom bracket, water bottle mounts on down tube. | ||
| Frame Tubing | Chrome-moly | Headset | Chrome |
| Fork | Ishiwata Mangny VX | Handlebar | MTB-CR4 Chrome-moly Bull Moose Type |
| Colors | Crimson and Forest Green | Stem | (unknown) |
| Frame Sizes | 17.5, 19, 21, 23 inches | Brakes | Shimano AT-50 Cantilever |
| Crank | Sugino TVP 48-38-28 | Seatpost | Kalloy SP-200 |
| Pedals | SR SP-529 | Saddle | Viscount Anatomic, Black |
| Shift Levers | Shimano MT-36 | Rims | Araya 7S 26" x 1.75" Alloy |
| Front Derailleur | Shimano AX-55 | Hubs | Suzu LPF-SS-MTB, Alloy, Nutted |
| Rear Derailleur | Shimano Z501 SGS | Spokes | 14 Guage Chrome Plated |
| Freewheel | Shimano ZO12 5 cogs Silver | Tires | 26" x 2.00" Gumwall |
| Chain | DID, Black | Weight | 31 lbs. for 19" |
| Notes | |||
