VintageLOTUSbicycles.com
Pegasus ATB
The Pegasus was Lotus' Top-of-the-Line ATB

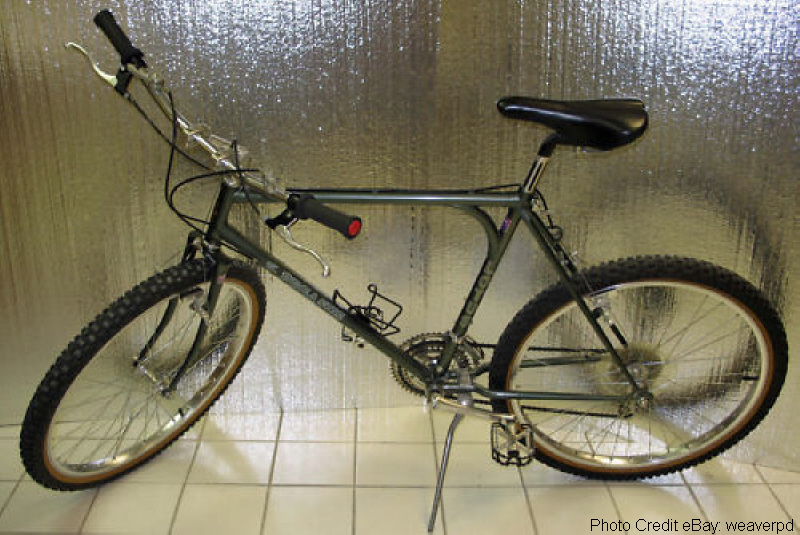

| 1983 Lotus Pegasus |
|||
| Frame Details | 1 1/4" down tube, 1 1/8" top tube, brazed on bottle bosses, brazed on brake bosses and cable guides | ||
| Frame Tubing | Tange Champion Double Butted Cro-Mo |
Headset | Tange Steel |
| Fork | Tange Champion Double Butted Cro-Mo | Handlebar | Chrome Moly |

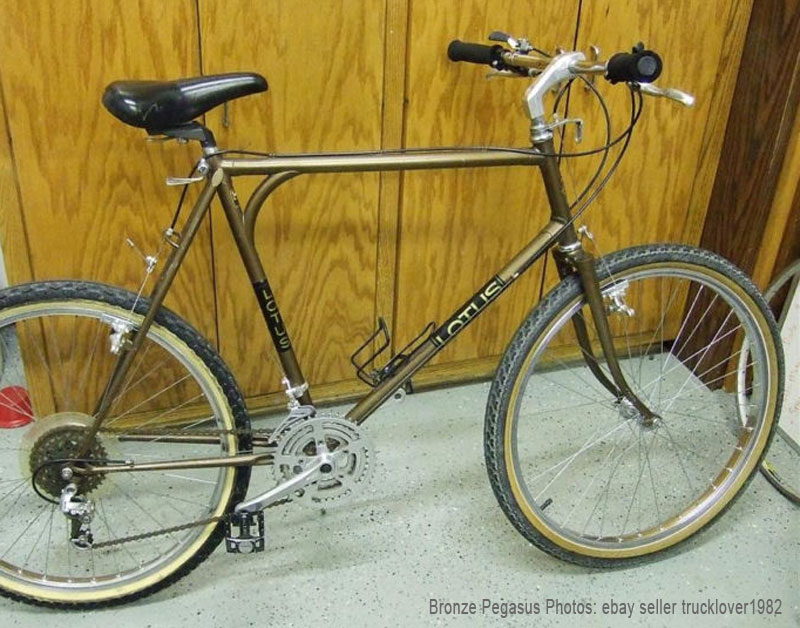

| Colors | Black and Bronze | Stem | Chrome Moly |

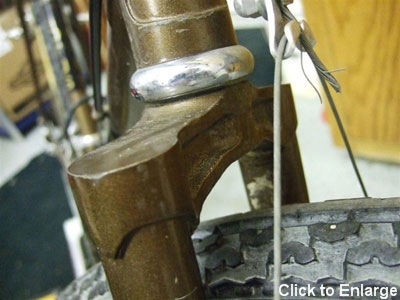

| Frame Sizes | 17.5, 19, 21, 23 inches | Brakes | Dia Compe Cantilever |

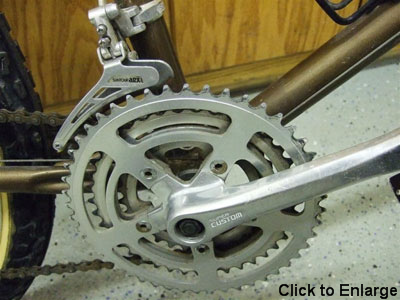

| Crank | Sugino Maxy Triple w/ Sealed Bottom Bracket | Seatpost | SR Laprade CT-P5 Alloy or Steel Extra Long |
| Pedals | KKT MTN | Saddle | Kashimax Anatomic |
| Shift Levers | Power Thumb Shifters | Rims | Araya 1.75" |
| Front Derailleur | Suntour Mountech | Hubs | Suntour Sealed Bearing |
| Rear Derailleur | Suntour Mountech | Spokes | |
| Freewheel | Suntour 5-Cog | Tires | IRC Racer X-1, 26" x 2.125" |
| Chain | Suntour | Weight | 29.75 lbs. |
| Notes | |||
